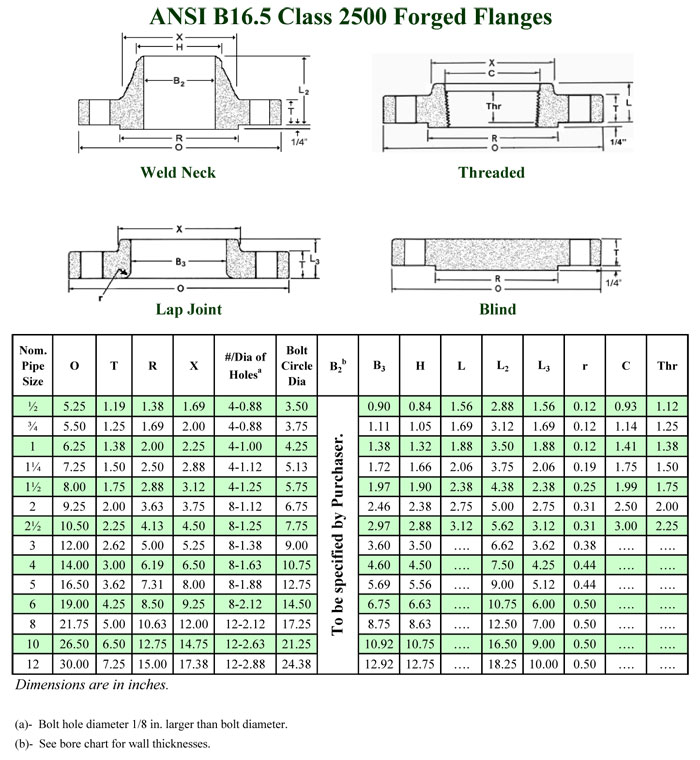

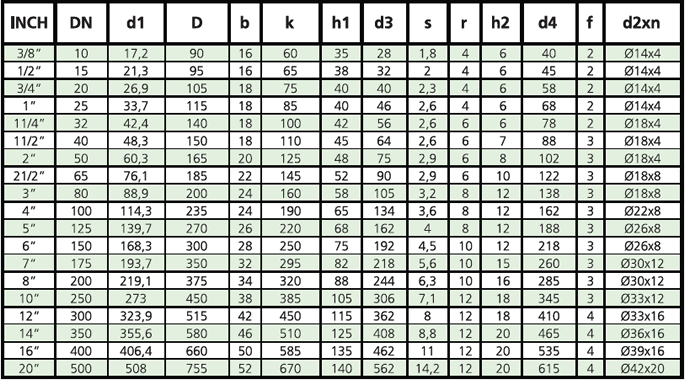

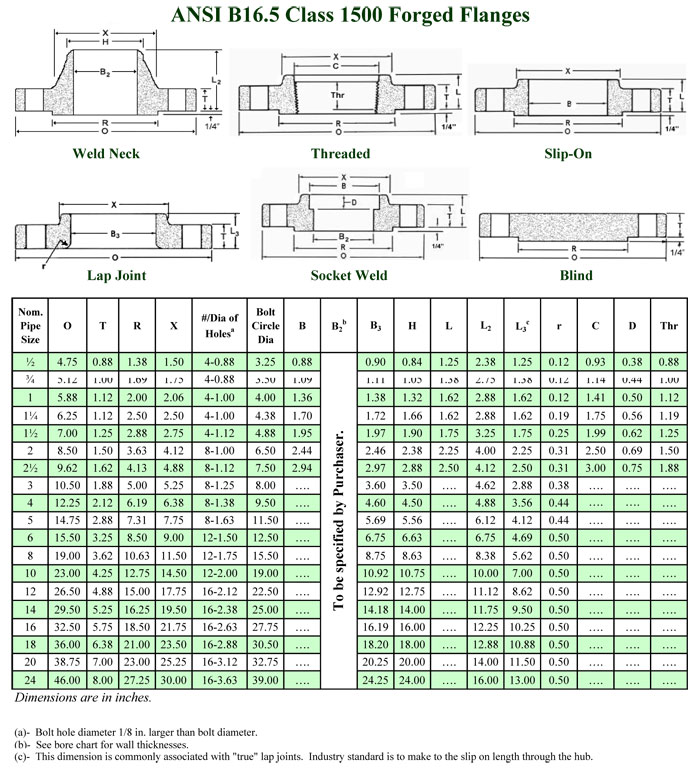

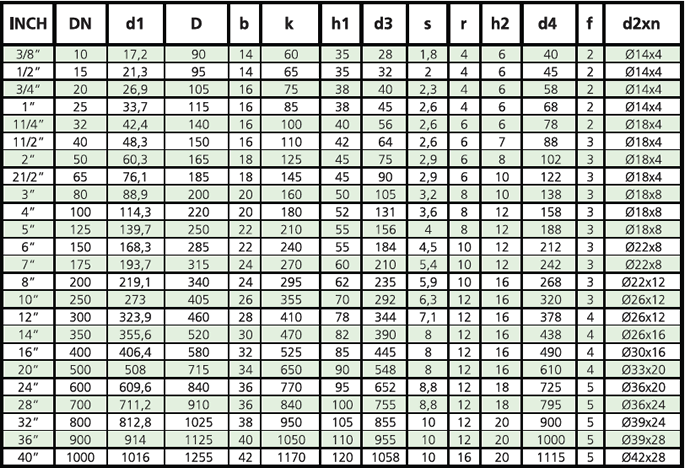

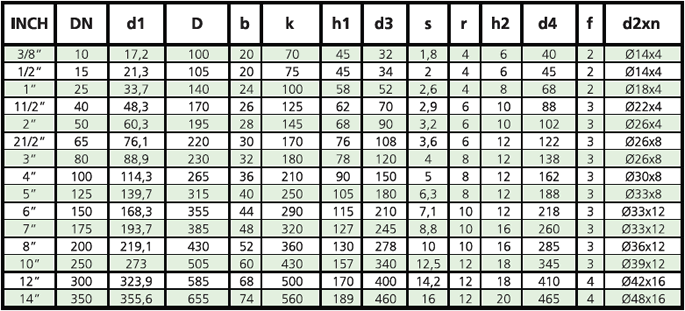

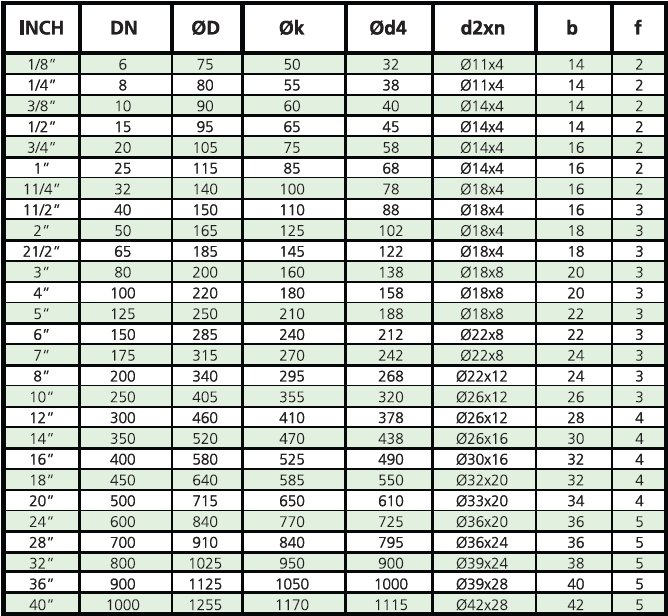

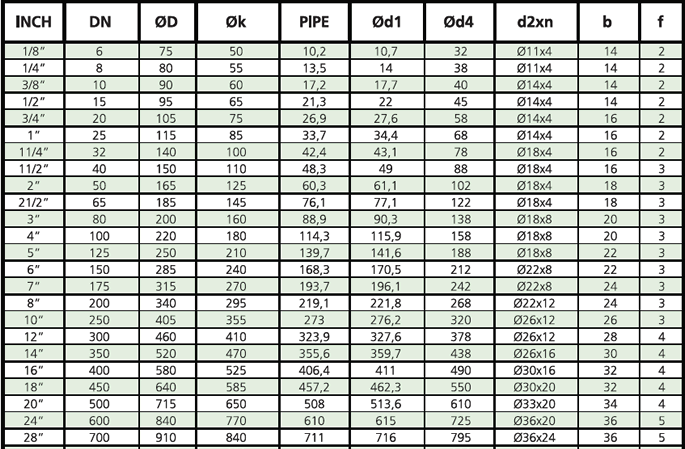

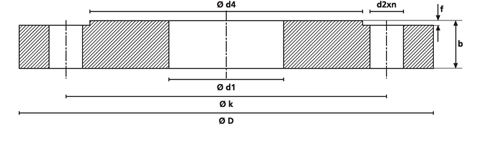

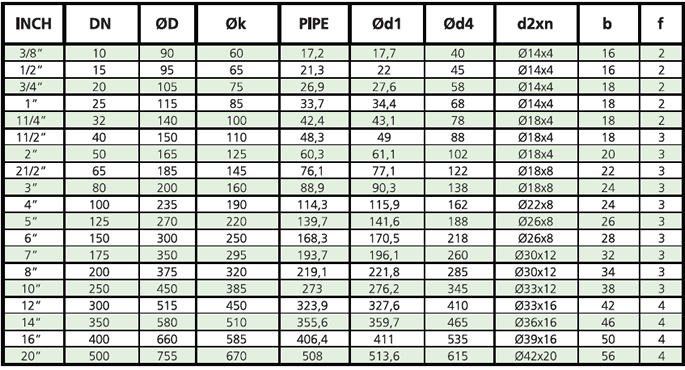

Stainless Steel DIN 2501 PN16 Raised Face Flanges Features

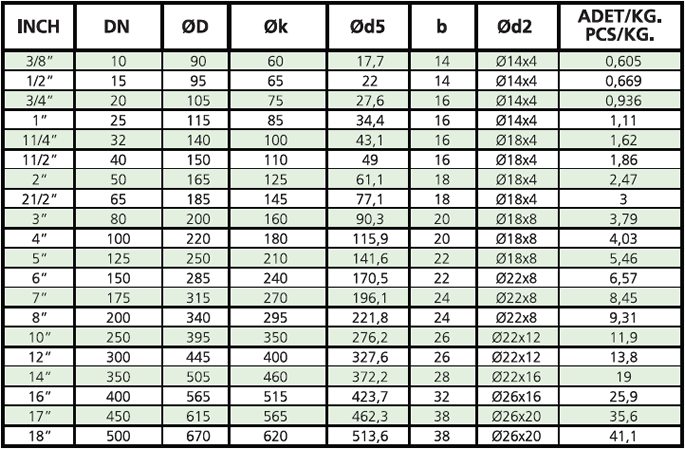

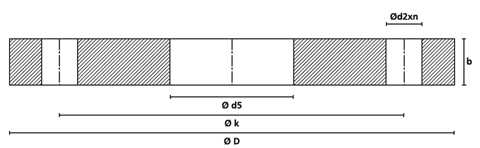

Stainless Steel DIN 2576 PN10 Flat Flanges Features

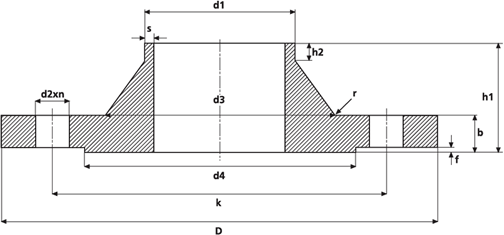

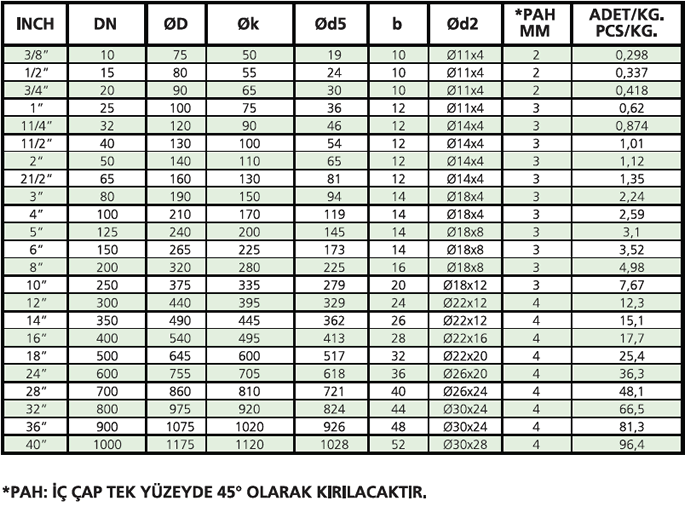

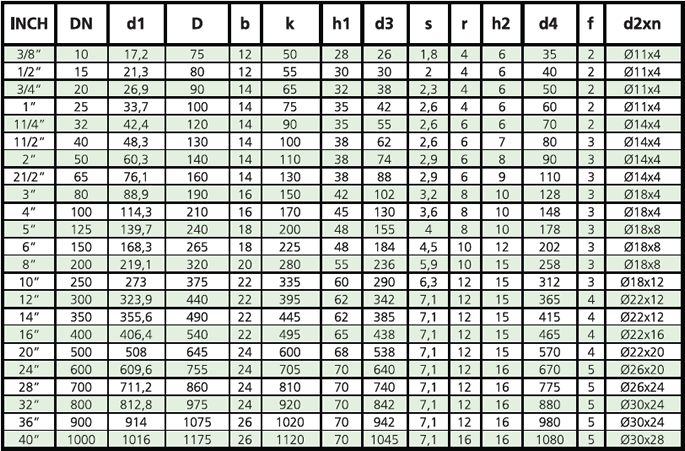

Stainless Steel DIN 2641 PN6 Collar Flanges Features

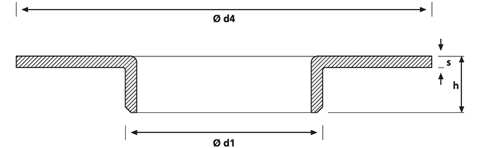

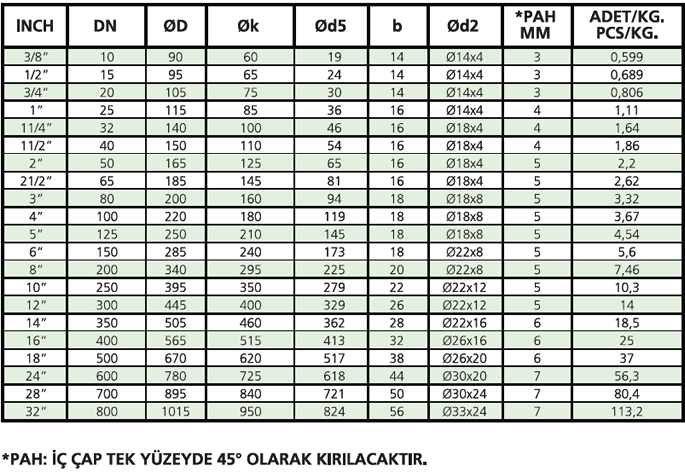

Stainless Steel DIN 2642 PN10 Collar Flanges Features

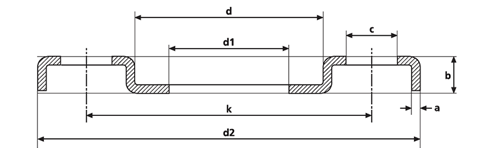

Stainless Steel DIN 2642F PN10 Pressed Flanges Features ;

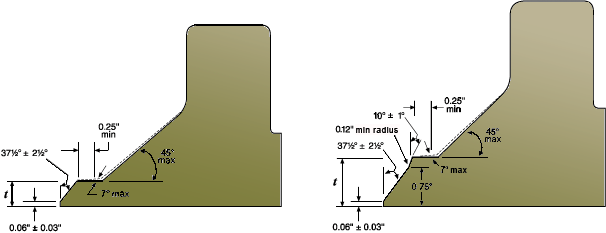

»Welding Bevel Standards | |
![]() |
|
Bevel for wall thicknesses (t) from 3/16" to 7/8", inclusive. | Bevel for wall thicknesses (t) greater than 7/8". |

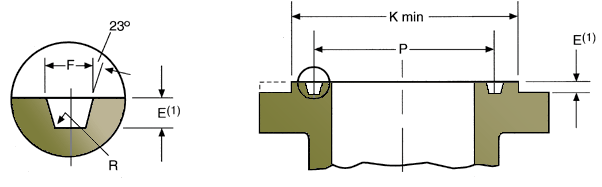

»DIMENSIONS OF RING JOINT FACINGS |
Nominal Pipe Size | Groove Number |
Groove Dimensions | Diameter of Raised Portion |
|||||||
Pitch Diameter |
Depth | Width | Radius at Bottom |
|||||||
Class 300 |
Class 400 |
Class 600 |
Class 900 |
P | E | F | R | K | ||
in. mm |
26 | 26 | 26 | R93 | 29.500 749.30 |
0.500 12.70 |
0.781 19.84 |
0.06 1.50 |
31.88 809.8 |
|
in. mm |
28 | 28 | 28 | R94 | 31.500 800.10 |
0.500 12.70 |
0.781 19.84 |
0.06 1.50 |
33.88 860.6 |
|
in. mm |
30 | 30 | 30 | R95 | 33.750 857.25 |
0.500 12.70 |
0.781 19.84 |
0.06 1.50 |
36.12 917.4 |
|
in. mm |
32 | 32 | 32 | R96 | 36.000 941.40 |
0.562 14.27 |
0.906 23.01 |
0.06 1.50 |
38.75 984.3 |
|
in. mm |
34 | 34 | 34 | R97 | 38.000 965.20 |
0.562 14.27 |
0.906 23.01 |
0.06 1.50 |
40.75 1035.1 |
|
in. mm |
36 | 36 | 36 | R98 | 40.250 1022.35 |
0.562 14.27 |
0.906 23.01 |
0.06 1.50 |
43.00 1092.20 |
|
in. mm |
26 | R100 | 29.500 749.30 |
0.688 17.48 |
1.188 30.18 |
0.09 2.30 |
32.75 831.9 |
|||
in. mm |
28 | R101 | 31.500 800.10 |
0.688 17.48 |
1.312 33.32 |
0.06 1.50 |
36.12 917.4 |
|||
in. mm |
30 | R102 | 33.750 857.25 |
0.500 12.70 |
0.781 19.84 |
0.09 2.30 |
35.00 889.0 |
|||
in. mm |
32 | R103 | 36.000 914.40 |
0.688 17.48 |
1.312 33.32 |
0.09 2.30 |
39.50 1003.3 |
|||
in. mm |
34 | R104 | 38.000 965.20 |
0.812 20.62 |
1.438 36.53 |
0.09 2.30 |
42.00 1066.8 |
|||
in. mm |
36 | R105 | 40.250 1022.35 |
0.812 20.62 |
1.438 36.53 |
0.09 2.30 |
44.25 1124.0 |
TOLERANCES (inches): |
TOLERANCES (mm): |
||||
P | (pitch diameter) ±0.005 | P | (pitch diameter) ±0.13 | ||
E | (depth) +0.016, -0.000 | E | (depth) +0.40, -0.00 | ||
F | (width) ±0.008 | F | (width) ±0.20 | ||
R | (radius at bottom) max. | R | (radius at bottom) max. | ||
23° (angle) ±½ deg. | |
23° (angle) ±½ deg. |

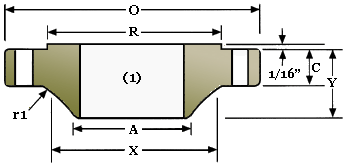

» Series A Class 150 |
![]() |
![]() |
Nominal Size NPS |
Outside Diameter Flange |
Thickness of Flange, Min.(2) |
Length thru Hub |
Diameter of Hub at Base |
Diameter of Hub at Point of Welding |
Diameter of Raised Face |
Diameter of Bolt Circle |
No. of Bolt Holes |
Diameter of Bolt Holes |
Diameter of Bolt |
Fillet Radius Min. |
||
WNF | BLIND | ||||||||||||
O | C | C | Y | X | A | R | r1 | ||||||
26 | in. | 34.25 | 2.69 | 2.69 | 4.75 | 26.62 | 26.00 | 29.50 | 31.75 | 24 | 1.38 | 1¼ | 0.38 |
mm. | 870.0 | 68.3 | 68.3 | 120.7 | 676.1 | 660.4 | 749.3 | 806.5 | 35.1 | 31.8 | 9.7 | ||
28 | in. | 36.50 | 2.81 | 2.81 | 4.94 | 28.62 | 28.00 | 31.50 | 34.00 | 28 | 1.38 | 1¼ | 0.44 |
mm. | 927.1 | 71.4 | 71.4 | 125.5 | 726.9 | 711.2 | 800.1 | 863.6 | 35.1 | 31.8 | 11.2 | ||
30 | in. | 38.75 | 2.94 | 2.94 | 5.38 | 30.75 | 30.00 | 33.75 | 36.00 | 28 | 1.38 | 1¼ | 0.44 |
mm. | 984.30 | 74.70 | 74.70 | 136.7 | 781.1 | 762.0 | 857.3 | 914.4 | 35.1 | 31.8 | 11.2 | ||
32 | in. | 41.75 | 3.19 | 3.19 | 5.69 | 32.75 | 32.00 | 36.00 | 38.50 | 28 | 1.62 | 1½ | 0.44 |
mm. | 1060.5 | 81.00 | 81.00 | 144.50 | 831.9 | 812.8 | 914.4 | 977.9 | 41.1 | 38.1 | 11.2 | ||
34 | in. | 43.75 | 3.25 | 3.25 | 5.88 | 34.75 | 34.00 | 38.00 | 40.50 | 32 | 1.62 | 1½ | 0.50 |
mm. | 1111.3 | 82.6 | 82.6 | 149.4 | 882.7 | 863.6 | 965.2 | 1028.7 | 41.1 | 38.1 | 12.7 | ||
36 | in. | 46.00 | 3.56 | 3.56 | 6.19 | 36.75 | 36.00 | 40.25 | 42.75 | 32 | 1.62 | 1½ | 0.50 |
mm. | 1168.4 | 90.4 | 90.4 | 157.2 | 933.5 | 914.4 | 1022.4 | 1085.9 | 41.1 | 38.1 | 12.7 | ||
38 | in. | 48.75 | 3.44 | 3.44 | 6.19 | 39.00 | 38.00 | 42.25 | 45.25 | 32 | 1.62 | 1½ | 0.50 |
mm. | 1238.3 | 87.4 | 87.4 | 157.2 | 990.6 | 965.2 | 1073.2 | 1149.4 | 41.1 | 38.1 | 12.7 | ||
40 | in. | 50.75 | 3.56 | 3.56 | 6.44 | 41.00 | 40.00 | 44.25 | 47.25 | 36 | 1.62 | 1½ | 0.50 |
mm. | 1289.0 | 90.4 | 90.4 | 163.6 | 1041.4 | 1016.0 | 1124.0 | 1200.2 | 41.1 | 38.1 | 12.7 | ||
42 | in. | 53.00 | 3.81 | 3.81 | 6.75 | 43.00 | 42.00 | 47.00 | 49.50 | 36 | 1.62 | 1½ | 0.50 |
mm. | 1346.20 | 96.80 | 96.80 | 171.50 | 1092.2 | 1066.8 | 1193.8 | 1257.3 | 41.1 | 38.1 | 12.7 | ||
44 | in. | 55.25 | 4.00 | 4.00 | 7.00 | 45.00 | 44.00 | 49.00 | 51.75 | 40 | 1.62 | 1½ | 0.50 |
mm. | 1403.4 | 101.6 | 101.6 | 177.8 | 1143.0 | 1117.6 | 1244.6 | 1314.5 | 41.1 | 38.1 | 12.7 | ||
46 | in. | 57.25 | 4.06 | 4.06 | 7.31 | 47.12 | 46.00 | 51.00 | 53.75 | 40 | 1.62 | 1½ | 0.50 |
mm. | 1454.2 | 103.1 | 103.1 | 185.7 | 1196.8 | 1168.4 | 1295.4 | 1365.3 | 41.1 | 38.1 | 12.7 | ||
48 | in. | 59.50 | 4.25 | 4.25 | 7.56 | 49.12 | 48.00 | 53.50 | 56.00 | 44 | 1.62 | 1½ | 0.50 |
mm. | 1511.3 | 108.0 | 108.0 | 192.0 | 1247.6 | 1219.2 | 1358.9 | 1422.4 | 41.1 | 38.1 | 12.7 | ||
50 | in. | 61.75 | 4.38 | 4.38 | 8.00 | 51.25 | 50.00 | 55.50 | 58.25 | 44 | 1.88 | 1¾ | 0.50 |
mm. | 1568.5 | 111.3 | 111.3 | 203.2 | 1301.8 | 1270.0 | 1409.7 | 1479.6 | 47.8 | 44.5 | 12.7 | ||
52 | in. | 64.00 | 4.56 | 4.56 | 8.25 | 53.25 | 52.00 | 57.50 | 60.25 | 44 | 1.88 | 1¾ | 0.50 |
mm. | 1625.6 | 115.8 | 115.8 | 209.6 | 1352.6 | 1320.8 | 1460.5 | 1530.4 | 47.8 | 44.5 | 12.7 | ||
54 | in. | 66.25 | 4.75 | 4.75 | 8.50 | 55.25 | 54.00 | 59.50 | 62.75 | 44 | 1.88 | 1¾ | 0.50 |
mm. | 1682.8 | 120.7 | 120.7 | 215.9 | 1403.4 | 1371.6 | 1511.3 | 1593.9 | 47.8 | 44.5 | 12.7 | ||
56 | in. | 68.75 | 4.88 | 4.88 | 9.00 | 57.38 | 56.00 | 62.00 | 65.00 | 48 | 1.88 | 1¾ | 0.50 |
mm. | 1746.3 | 124.0 | 124.0 | 228.6 | 1457.5 | 1422.4 | 1574.8 | 1651.0 | 47.8 | 44.5 | 12.7 | ||
58 | in. | 71.00 | 5.06 | 5.06 | 9.25 | 59.38 | 58.00 | 64.00 | 67.25 | 48 | 1.88 | 1¾ | 0.50 |
mm. | 1803.4 | 128.5 | 128.5 | 235.0 | 1508.3 | 1473.2 | 1625.6 | 1708.2 | 47.8 | 44.5 | 12.7 | ||
60 | in. | 73.00 | 5.19 | 5.19 | 9.44 | 61.38 | 60.00 | 66.00 | 69.25 | 52 | 1.88 | 1¾ | 0.50 |
mm. | 1854.2 | 131.8 | 131.8 | 239.8 | 1559.1 | 1524.0 | 1676.4 | 1759.0 | 47.8 | 44.5 | 12.7 |

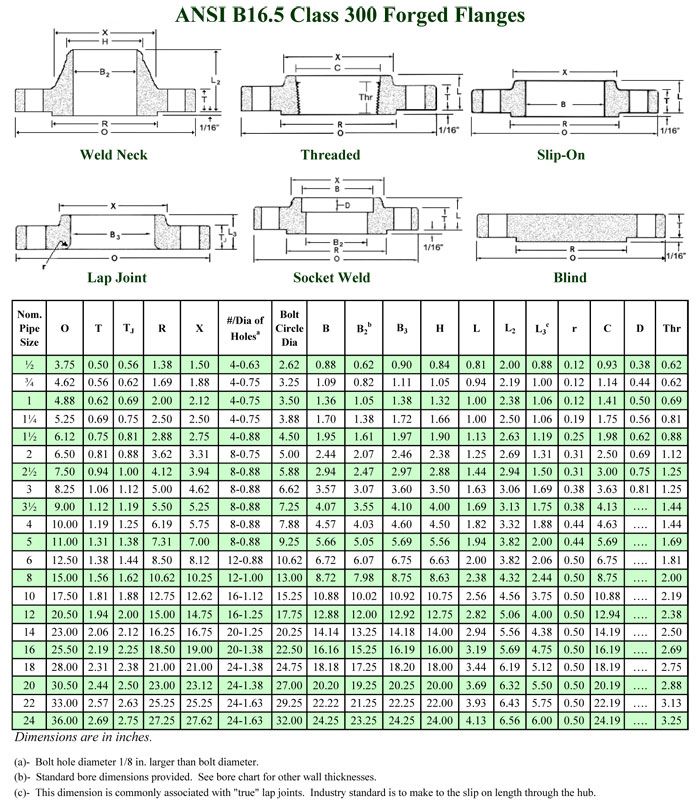

» Series A Class 300 |
![]() |
![]() |
Nominal Size NPS |
Outside Diameter Flange |
Thickness of Flange, Min.(2) |
Length thru Hub |
Diameter of Hub at Base |
Diameter of Hub at Point of Welding |
Diameter of Raised Face |
Diameter of Bolt Circle |
No. of Bolt Holes |
Diameter of Bolt Holes |
Diameter of Bolt |
Fillet Radius Min. |
||
WNF | BLIND | ||||||||||||
O | C | C | Y | X | A | R | r1 | ||||||
26 | in. | 38.25 | 3.12 | 3.31 | 7.25 | 28.38 | 26.00 | 29.50 | 34.50 | 28 | 1.75 | 1⅝ | 0.38 |
mm. | 971.6 | 79.2 | 84.1 | 184.2 | 720.9 | 660.4 | 749.3 | 876.3 | 44.5 | 41.4 | 9.7 | ||
28 | in. | 40.75 | 3.38 | 3.56 | 7.75 | 30.50 | 28.00 | 31.50 | 37.00 | 28 | 1.75 | 1⅝ | 0.44 |
mm. | 1035.1 | 85.9 | 90.4 | 196.9 | 774.7 | 711.2 | 800.1 | 939.8 | 44.5 | 41.4 | 11.2 | ||
30 | in. | 43.00 | 3.62 | 3.75 | 8.25 | 32.56 | 30.00 | 33.75 | 39.25 | 28 | 1.88 | 1¾ | 0.44 |
mm. | 1092.2 | 91.9 | 95.3 | 209.6 | 827.0 | 762.0 | 857.3 | 997.0 | 47.8 | 44.5 | 11.2 | ||
32 | in. | 45.25 | 3.88 | 3.94 | 8.75 | 34.69 | 32.00 | 36.00 | 41.50 | 28 | 2.00 | 1⅞ | 0.44 |
mm. | 1149.4 | 98.6 | 100.1 | 222.3 | 881.1 | 812.8 | 914.4 | 1054.1 | 50.8 | 47.8 | 11.2 | ||
34 | in. | 47.50 | 4.00 | 4.12 | 9.12 | 36.88 | 34.00 | 38.00 | 43.50 | 28 | 2.00 | 1⅞ | 0.50 |
mm. | 1206.5 | 101.6 | 104.6 | 231.6 | 936.8 | 863.6 | 965.2 | 1104.9 | 50.8 | 47.8 | 12.7 | ||
36 | in. | 50.00 | 4.12 | 4.38 | 9.50 | 39.00 | 36.00 | 40.25 | 46.00 | 32 | 2.12 | 2 | 0.50 |
mm. | 1270.0 | 104.6 | 111.3 | 241.3 | 990.6 | 914.4 | 1022.4 | 1168.4 | 53.8 | 50.8 | 12.7 | ||
38 | in. | 46.00 | 4.25 | 4.25 | 7.12 | 39.12 | 38.00 | 40.50 | 43.00 | 32 | 1.62 | 1½ | 0.50 |
mm. | 1168.4 | 108.0 | 108.0 | 180.8 | 993.6 | 965.2 | 1028.7 | 1092.2 | 41.1 | 38.1 | 12.7 | ||
40 | in. | 48.75 | 4.50 | 4.50 | 7.62 | 41.25 | 40.00 | 42.75 | 45.50 | 32 | 1.75 | 1⅝ | 0.50 |
mm. | 1238.3 | 114.3 | 114.3 | 193.5 | 1054.60 | 1016.0 | 1085.9 | 1155.7 | 44.5 | 41.4 | 12.7 | ||
42 | in. | 50.75 | 4.69 | 4.69 | 7.88 | 43.25 | 42.00 | 44.75 | 47.50 | 32 | 1.75 | 1⅝ | 0.50 |
mm. | 1289.1 | 119.1 | 119.1 | 200.2 | 1098.6 | 1066.8 | 1136.7 | 1206.5 | 44.5 | 41.4 | 12.7 | ||
44 | in. | 53.25 | 4.88 | 4.88 | 8.12 | 45.25 | 44.00 | 47.00 | 49.75 | 32 | 1.88 | 1¾ | 0.50 |
mm. | 1352.6 | 124.0 | 124.0 | 206.2 | 1149.4 | 1117.6 | 1193.8 | 1263.7 | 47.8 | 44.5 | 12.7 | ||
46 | in. | 55.75 | 5.06 | 5.06 | 8.50 | 47.38 | 46.00 | 49.00 | 52.00 | 28 | 2.00 | 1⅞ | 0.50 |
mm. | 1416.1 | 128.5 | 128.5 | 215.9 | 1203.5 | 1168.4 | 1244.6 | 1320.8 | 50.8 | 47.8 | 12.7 | ||
48 | in. | 57.75 | 5.25 | 5.25 | 8.81 | 49.38 | 48.00 | 51.25 | 54.00 | 32 | 2.00 | 1⅞ | 0.50 |
mm. | 1466.9 | 108.0 | 108.0 | 192.0 | 1247.6 | 1219.2 | 1358.9 | 1422.4 | 41.1 | 38.1 | 12.7 | ||
50 | in. | 60.25 | 5.50 | 5.50 | 9.12 | 51.38 | 50.00 | 53.50 | 56.25 | 32 | 2.12 | 2 | 0.50 |
mm. | 1530.4 | 139.7 | 139.7 | 231.6 | 1305.1 | 1270.0 | 1358.9 | 1428.8 | 53.8 | 50.8 | 12.7 | ||
52 | in. | 62.25 | 5.69 | 5.69 | 9.38 | 53.38 | 52.00 | 55.50 | 58.25 | 32 | 2.12 | 2 | 0.50 |
mm. | 1581.2 | 144.5 | 144.5 | 238.3 | 1355.9 | 1320.8 | 1409.7 | 1479.6 | 53.8 | 50.8 | 12.7 | ||
54 | in. | 65.25 | 6.00 | 6.00 | 9.94 | 55.50 | 54.00 | 57.75 | 61.00 | 28 | 2.38 | 2¼ | 0.50 |
mm. | 1657.4 | 152.4 | 152.4 | 252.5 | 1409.7 | 1371.6 | 1466.9 | 1549.4 | 60.5 | 57.2 | 12.7 | ||
56 | in. | 67.25 | 6.06 | 6.06 | 10.25 | 57.62 | 56.00 | 59.75 | 63.00 | 28 | 2.38 | 2¼ | 0.50 |
mm. | 1708.2 | 153.9 | 153.9 | 260.4 | 1463.5 | 1422.4 | 1517.7 | 1600.2 | 60.5 | 57.2 | 12.7 | ||
58 | in. | 69.25 | 6.25 | 6.25 | 10.50 | 59.62 | 58.00 | 62.00 | 65.00 | 32 | 2.38 | 2¼ | 0.50 |
mm. | 1759.0 | 158.8 | 158.8 | 266.7 | 1514.3 | 1473.2 | 1574.8 | 1651.0 | 60.5 | 57.2 | 12.7 | ||
60 | in. | 71.25 | 6.44 | 6.44 | 10.75 | 61.62 | 60.00 | 64.00 | 67.00 | 32 | 2.38 | 2¼ | 0.50 |
mm. | 1809.8 | 163.6 | 163.6 | 273.1 | 1565.1 | 1524.0 | 1625.6 | 1701.8 | 60.5 | 57.2 | 12.7 |

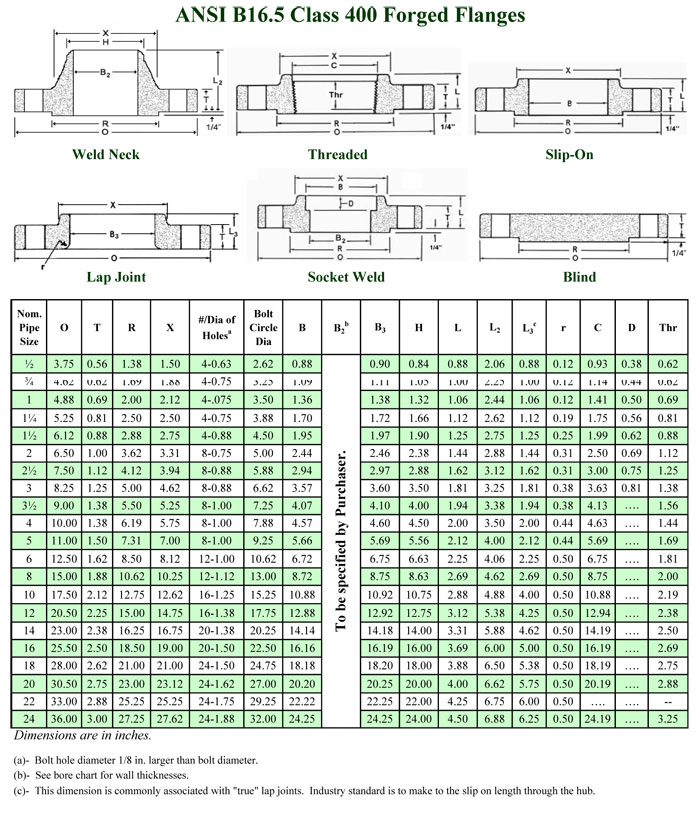

» Series A Class 400 |
![]() |
![]() |
Nominal Size NPS |
Outside Diameter Flange |
Thickness of Flange, Min.(2) |
Length thru Hub |
Diameter of Hub at Base |
Diameter of Hub at Point of Welding |
Diameter of Raised Face |
Diameter of Bolt Circle |
No. of Bolt Holes |
Diameter of Bolt Holes |
Diameter of Bolt |
Fillet Radius Min. |
||
WNF | BLIND | ||||||||||||
O | C | C | Y | X | A | R | r1 | ||||||
26 | in. | 38.25 | 3.50 | 3.88 | 7.62 | 28.62 | 26.00 | 29.50 | 34.50 | 28 | 1.88 | 1¾ | 0.44 |
mm. | 971.6 | 88.9 | 98.6 | 193.5 | 726.9 | 660.4 | 749.3 | 876.3 | 47.8 | 44.5 | 11.2 | ||
28 | in. | 40.75 | 3.75 | 4.12 | 8.12 | 30.81 | 28.00 | 31.50 | 37.00 | 28 | 2.00 | 1⅞ | 0.50 |
mm. | 1035.1 | 95.3 | 104.6 | 206.2 | 782.6 | 711.2 | 800.1 | 939.8 | 50.8 | 47.6 | 12.7 | ||
30 | in. | 43.00 | 4.00 | 4.38 | 8.62 | 32.94 | 30.00 | 33.75 | 39.25 | 28 | 2.12 | 2 | 0.50 |
mm. | 1092.2 | 101.6 | 111.3 | 218.9 | 836.7 | 762.0 | 857.3 | 997.0 | 53.8 | 50.8 | 12.7 | ||
32 | in. | 45.25 | 4.25 | 4.56 | 9.12 | 35.00 | 32.00 | 36.00 | 41.25 | 28 | 2.12 | 2 | 0.50 |
mm. | 1149.4 | 108.0 | 115.8 | 231.6 | 889.0 | 812.8 | 914.4 | 1047.8 | 53.8 | 50.8 | 12.7 | ||
34 | in. | 47.50 | 4.38 | 4.81 | 9.50 | 37.19 | 34.00 | 38.00 | 43.50 | 28 | 2.12 | 2 | 0.56 |
mm. | 1206.5 | 111.3 | 122.2 | 241.3 | 944.6 | 863.6 | 965.2 | 1104.9 | 53.8 | 50.8 | 14.2 | ||
36 | in. | 50.00 | 4.50 | 5.06 | 9.88 | 39.38 | 36.00 | 40.25 | 46.00 | 32 | 2.12 | 2 | 0.56 |
mm. | 1270.0 | 114.3 | 128.5 | 251.0 | 1000.3 | 914.4 | 1022.4 | 1168.4 | 53.8 | 50.8 | 14.2 | ||
38 | in. | 47.50 | 4.88 | 4.88 | 8.12 | 39.50 | 38.00 | 40.75 | 44.00 | 32 | 1.88 | 1¾ | 0.56 |
mm. | 1206.5 | 124.0 | 124.0 | 206.2 | 1003.3 | 965.2 | 1035.1 | 1117.6 | 47.8 | 44.5 | 14.2 | ||
40 | in. | 50.00 | 5.12 | 5.12 | 8.50 | 41.50 | 40.00 | 43.00 | 46.25 | 32 | 2.00 | 1⅞ | 0.56 |
mm. | 1270.0 | 130.0 | 130.0 | 215.9 | 1054.1 | 1016.0 | 1092.2 | 1174.8 | 50.8 | 47.6 | 14.2 | ||
42 | in. | 52.00 | 5.25 | 5.25 | 8.81 | 43.62 | 42.00 | 45.00 | 48.25 | 32 | 2.00 | 1⅞ | 0.56 |
mm. | 1320.8 | 133.4 | 133.4 | 223.8 | 1107.9 | 1066.8 | 1143.0 | 1225.6 | 50.8 | 47.6 | 14.2 | ||
44 | in. | 54.50 | 5.50 | 5.50 | 9.18 | 45.62 | 44.00 | 47.25 | 50.50 | 32 | 2.12 | 2 | 0.56 |
mm. | 1384.3 | 139.7 | 139.7 | 233.2 | 1158.7 | 1117.6 | 1200.2 | 1282.7 | 53.8 | 50.8 | 14.2 | ||
46 | in. | 56.75 | 5.75 | 5.75 | 9.62 | 47.75 | 46.00 | 49.50 | 52.75 | 36 | 2.12 | 2 | 0.56 |
mm. | 1441.5 | 146.1 | 146.1 | 244.3 | 1212.9 | 1168.4 | 1257.3 | 1339.9 | 53.8 | 50.8 | 14.2 | ||
48 | in. | 59.50 | 6.00 | 6.00 | 10.12 | 49.88 | 48.00 | 51.50 | 55.25 | 28 | 2.38 | 2¼ | 0.56 |
mm. | 1511.3 | 152.4 | 152.4 | 257.0 | 1267.0 | 1219.2 | 1308.1 | 1403.4 | 60.5 | 57.2 | 14.2 | ||
50 | in. | 61.75 | 6.19 | 6.25 | 10.56 | 52.00 | 50.00 | 53.62 | 57.50 | 32 | 2.38 | 2¼ | 0.56 |
mm. | 1568.5 | 157.2 | 158.8 | 168.2 | 1320.8 | 1270.0 | 1361.9 | 1460.5 | 60.5 | 57.2 | 14.2 | ||
52 | in. | 63.75 | 6.38 | 6.44 | 10.88 | 54.00 | 52.00 | 55.62 | 59.50 | 32 | 2.38 | 2¼ | 0.56 |
mm. | 1619.3 | 162.1 | 163.6 | 276.4 | 1371.6 | 1320.8 | 1412.7 | 1511.3 | 60.5 | 57.2 | 14.2 | ||
54 | in. | 67.00 | 6.69 | 6.75 | 11.38 | 56.12 | 54.00 | 57.88 | 62.25 | 28 | 2.62 | 2½ | 0.56 |
mm. | 1701.8 | 169.9 | 171.5 | 289.1 | 1425.4 | 1371.6 | 1470.2 | 1581.2 | 66.5 | 63.5 | 14.2 | ||
56 | in. | 69.00 | 6.88 | 6.94 | 11.75 | 58.25 | 56.00 | 60.12 | 64.25 | 32 | 2.62 | 2½ | 0.56 |
mm. | 1752.6 | 174.8 | 176.. | 298.5 | 1479.6 | 1422.4 | 1527.0 | 1632.0 | 66.5 | 63.5 | 14.2 | ||
58 | in. | 71.00 | 7.00 | 7.12 | 12.06 | 60.25 | 58.00 | 62.12 | 66.25 | 32 | 2.62 | 2½ | 0.56 |
mm. | 1803.4 | 177.8 | 180.8 | 306.3 | 1530.4 | 1473.2 | 1577.8 | 1682.8 | 66.5 | 63.5 | 14.2 | ||
60 | in. | 74.25 | 7.31 | 7.44 | 12..56 | 62.38 | 60.00 | 64.38 | 69.00 | 32 | 2.88 | 2¾ | 0.56 |
mm. | 1886.0 | 185.7 | 189.0 | 319.0 | 1584.5 | 1524.0 | 1635.3 | 1752.6 | 73.12 | 69.8 | 14.2 |

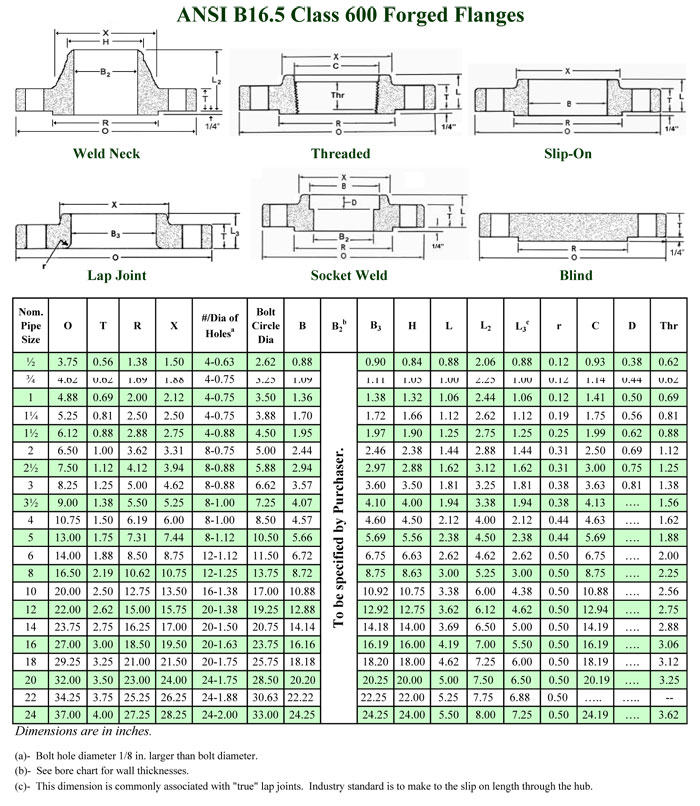

» Series A Class 600 |
![]() |
![]() |
Nominal Size NPS |
Outside Diameter Flange |
Thickness of Flange, Min.(2) |
Length thru Hub |
Diameter of Hub at Base |
Diameter of Hub at Point of Welding |
Diameter of Raised Face |
Diameter of Bolt Circle |
No. of Bolt Holes |
Diameter of Bolt Holes |
Diameter of Bolt |
Fillet Radius Min. |
||
WNF | BLIND | ||||||||||||
O | C | C | Y | X | A | R | r1 | ||||||
26 | in. | 40.00 | 4.25 | 4.94 | 8.75 | 29.44 | 26.00 | 29.50 | 36.00 | 28 | 2.00 | 1⅞ | 0.50 |
mm. | 1016.0 | 108.0 | 125.5 | 222.3 | 747.8 | 660.4 | 749.3 | 914.4 | 50.8 | 47.6 | 12.7 | ||
28 | in. | 42.25 | 4.38 | 5.19 | 9.25 | 31.62 | 28.00 | 31.50 | 38.00 | 28 | 2.12 | 2 | 0.50 |
mm. | 1073.2 | 111.3 | 131.8 | 235.0 | 803.1 | 711.2 | 800.1 | 965.2 | 53.8 | 50.8 | 12.7 | ||
30 | in. | 44.50 | 4.50 | 5.50 | 9.75 | 33.94 | 30.00 | 33.75 | 40.25 | 28 | 2.12 | 2 | 0.50 |
mm. | 1130.3 | 114.3 | 139.7 | 247.7 | 862.1 | 762.0 | 857.3 | 1022.4 | 53.8 | 50.8 | 12.7 | ||
32 | in. | 47.00 | 4.62 | 5.81 | 10.25 | 36.12 | 32.00 | 36.00 | 42.50 | 28 | 2.38 | 2¼ | 0.50 |
mm. | 1193.8 | 117.3 | 147.6 | 260.4 | 917.4 | 812.8 | 914.4 | 1079.5 | 60.5 | 57.2 | 12.7 | ||
34 | in. | 49.00 | 4.75 | 6.06 | 10.62 | 38.31 | 34.00 | 38.00 | 44.50 | 28 | 2.38 | 2¼ | 0.56 |
mm. | 1244.6 | 120.7 | 153.9 | 269.7 | 973.1 | 863.6 | 965.2 | 1130.3 | 60.5 | 57.2 | 14.2 | ||
36 | in. | 51.75 | 4.88 | 6.38 | 11.12 | 40.62 | 36.00 | 40.25 | 47.00 | 28 | 2.62 | 2½ | 0.56 |
mm. | 1314.5 | 124.0 | 162.1 | 282.4 | 1031.7 | 914.4 | 1022.4 | 1193.8 | 66.5 | 63.5 | 14.2 | ||
38 | in. | 50.00 | 6.00 | 6.12 | 10.00 | 40.25 | 38.00 | 41.50 | 45.75 | 28 | 2.38 | 2¼ | 0.56 |
mm. | 1270.0 | 152.4 | 155.4 | 254.0 | 1022.4 | 965.2 | 1054.1 | 1162.1 | 60.5 | 57.2 | 14.2 | ||
40 | in. | 52.00 | 6.25 | 6.38 | 10.38 | 42.25 | 40.00 | 43.75 | 47.75 | 32 | 2.38 | 2¼ | 0.56 |
mm. | 1320.8 | 158.8 | 162.1 | 263.7 | 1073.2 | 1016.0 | 1111.3 | 1212.9 | 60.5 | 57.2 | 14.2 | ||
42 | in. | 55.25 | 6.62 | 6.75 | 11.00 | 44.38 | 42.00 | 46.00 | 50.50 | 28 | 2.62 | 2½ | 0.56 |
mm. | 1403.4 | 168.1 | 171.5 | 279.4 | 1127.3 | 1066.8 | 1168.4 | 1282.7 | 66.5 | 63.5 | 14.2 | ||
44 | in. | 57.25 | 6.81 | 7.00 | 11.38 | 46.50 | 44.00 | 48.25 | 52.50 | 32 | 2.62 | 2½ | 0.56 |
mm. | 1454.2 | 173.0 | 177.8 | 289.1 | 1181.1 | 1117.6 | 1225.6 | 1333.5 | 66.5 | 63.5 | 14.2 | ||
46 | in. | 59.50 | 7.06 | 7.31 | 11.81 | 48.62 | 46.00 | 50.25 | 54.75 | 32 | 2.62 | 2½ | 0.56 |
mm. | 1511.3 | 179.3 | 185.7 | 300.0 | 1234.9 | 1168.4 | 1276.4 | 1390.7 | 66.5 | 63.5 | 14.2 | ||
48 | in. | 62.75 | 7.44 | 7.69 | 12.44 | 50.75 | 48.00 | 52.50 | 57.50 | 32 | 2.88 | 2¾ | 0.56 |
mm. | 1593.9 | 189.0 | 195.3 | 316.0 | 1289.1 | 1219.2 | 1333.5 | 1460.5 | 73.12 | 69.9 | 14.2 | ||
50 | in. | 65.75 | 7.75 | 8.00 | 12.94 | 52.88 | 50.00 | 54.50 | 60.00 | 28 | 3.12 | 3 | 0.56 |
mm. | 1670.1 | 196.9 | 203.2 | 328.7 | 1343.2 | 1270.0 | 1384.3 | 1524.0 | 79.2 | 76.2 | 14.2 | ||
52 | in. | 67.75 | 8.00 | 8.25 | 13.25 | 54.88 | 52.00 | 56.50 | 62.00 | 32 | 3.12 | 3 | 0.56 |
mm. | 1720.9 | 203.2 | 209.6 | 336.6 | 1394.0 | 1320.8 | 1435.1 | 1574.8 | 79.2 | 76.2 | 14.2 | ||
54 | in. | 70.00 | 8.25 | 8.56 | 13.75 | 57.00 | 54.00 | 58.75 | 64.25 | 32 | 3.12 | 3 | 0.56 |
mm. | 1778.0 | 209.6 | 217.4 | 349.3 | 1447.8 | 1371.6 | 1492.3 | 1632.0 | 79.2 | 76.2 | 14.2 | ||
56 | in. | 73.00 | 8.56 | 8.88 | 14.25 | 59.12 | 56.00 | 60.75 | 66.75 | 32 | 3.38 | 3¼ | 0.62 |
mm. | 1854.2 | 217.4 | 225.6 | 362.0 | 1501.6 | 1422.4 | 1543.1 | 1695.5 | 85.9 | 82.6 | 15.7 | ||
58 | in. | 75.00 | 8.75 | 9.12 | 14.56 | 61.12 | 58.00 | 63.00 | 68.75 | 32 | 3.38 | 3¼ | 0.62 |
mm. | 1905.0 | 222.3 | 231.6 | 369.8 | 1552.4 | 1473.2 | 1600.2 | 1746.3 | 85.9 | 82.6 | 15.7 | ||
60 | in. | 78.50 | 9.19 | 9.56 | 15.31 | 63.38 | 60.00 | 65.25 | 71.75 | 28 | 3.62 | 3½ | 0.69 |
mm. | 1993.9 | 233.4 | 242.8 | 388.9 | 1609.9 | 1524.0 | 1657.4 | 1822.5 | 91.9 | 88.9 | 17.5 |
» Series A Class 900 |
![]() |
![]() |
Nominal Size NPS |
Outside Diameter Flange |
Thickness of Flange, Min.(2) |
Length thru Hub |
Diameter of Hub at Base |
Diameter of Hub at Point of Welding |
Diameter of Raised Face |
Diameter of Bolt Circle |
No. of Bolt Holes |
Diameter of Bolt Holes |
Diameter of Bolt |
Fillet Radius Min. |
||
WNF | BLIND | ||||||||||||
O | C | C | Y | X | A | R | r1 | ||||||
26 | in. | 42.75 | 5.50 | 6.31 | 11.25 | 30.50 | 26.00 | 29.50 | 37.50 | 20 | 2.88 | 2¾ | 0.44 |
mm. | 1085.9 | 139.7 | 160.3 | 285.8 | 774.7 | 660.4 | 749.3 | 952.5 | 73.2 | 69.9 | 11.2 | ||
28 | in. | 46.00 | 5.62 | 6.75 | 11.75 | 32.75 | 28.00 | 31.50 | 40.25 | 20 | 3.12 | 3 | 0.50 |
mm. | 1168.4 | 142.7 | 171.5 | 298.5 | 831.9 | 711.2 | 800.1 | 1022.4 | 79.2 | 76.2 | 12.7 | ||
30 | in. | 48.50 | 5.88 | 7.18 | 12.25 | 35.00 | 30.00 | 33.75 | 42.75 | 20 | 3.12 | 3 | 0.50 |
mm. | 1231.9 | 149.4 | 182.4 | 311.2 | 889.0 | 762.0 | 857.3 | 1085.9 | 79.2 | 76.2 | 12.7 | ||
32 | in. | 51.75 | 6.25 | 7.62 | 13.00 | 37.25 | 32.00 | 36.00 | 45.50 | 20 | 3.38 | 3¼ | 0.50 |
mm. | 1314.5 | 158.8 | 193.5 | 330.2 | 946.2 | 812.8 | 914.4 | 1155.7 | 85.9 | 82.6 | 12.7 | ||
34 | in. | 55.00 | 6.50 | 8.06 | 13.75 | 39.62 | 34.00 | 38.00 | 48.25 | 20 | 3.62 | 3½ | 0.56 |
mm. | 1397.0 | 165.1 | 204.7 | 349.3 | 1006.3 | 863.6 | 965.2 | 1225.6 | 91.9 | 88.9 | 14.2 | ||
36 | in. | 57.50 | 6.75 | 8.44 | 14.25 | 41.88 | 36.00 | 40.25 | 50.75 | 20 | 3.62 | 3½ | 0.56 |
mm. | 1460.5 | 171.5 | 214.4 | 362.0 | 1063.8 | 914.4 | 1022.4 | 1289.1 | 91.9 | 88.9 | 14.2 | ||
38 | in. | 57.50 | 7.50 | 8.50 | 13.88 | 42.25 | 38.00 | 43.25 | 50.75 | 20 | 3.62 | 3½ | 0.75 |
mm. | 1460.5 | 190.5 | 215.9 | 352.6 | 1073.2 | 965.2 | 1098.6 | 1289.1 | 91.9 | 88.9 | 19.1 | ||
40 | in. | 59.50 | 7.75 | 8.81 | 14.31 | 44.38 | 40.00 | 45.75 | 52.75 | 24 | 3.62 | 3½ | 0.81 |
mm. | 1511.3 | 196.9 | 223.8 | 363.5 | 1127.3 | 1016.0 | 1162.1 | 1339.9 | 91.9 | 88.9 | 20.6 | ||
42 | in. | 91.50 | 8.12 | 9.12 | 14.62 | 46.31 | 42.00 | 47.75 | 54.75 | 24 | 3.62 | 3½ | 0.81 |
mm. | 1562.1 | 206.2 | 231.6 | 371.3 | 1176.3 | 1066.8 | 1212.9 | 1390.7 | 91.9 | 88.9 | 20.6 | ||
44 | in. | 64.88 | 8.44 | 9.56 | 15.38 | 48.62 | 44.00 | 50.00 | 57.62 | 24 | 3.88 | 3¾ | 0.88 |
mm. | 1648.0 | 214.4 | 242.8 | 390.7 | 1234.9 | 1117.6 | 1270.0 | 1463.5 | 98.60 | 95.3 | 22.4 | ||
46 | in. | 68.25 | 8.88 | 10.86 | 16.18 | 50.88 | 46.00 | 52.50 | 60.50 | 24 | 4.12 | 4 | 0.88 |
mm. | 1733.6 | 225.6 | 275.8 | 411.0 | 1292.4 | 1168.4 | 1333.5 | 1536.7 | 104.6 | 101.6 | 22.4 | ||
48 | in. | 70.25 | 9.19 | 10.38 | 16.50 | 52.88 | 48.00 | 54.50 | 62.50 | 24 | 4.12 | 4 | 0.94 |
mm. | 1784.4 | 233.4 | 263.7 | 419.1 | 1343.2 | 1219.2 | 1384.3 | 1587.5 | 104.6 | 101.6 | 23.9 |
»Series B Class 150 |
![]() |
NOM SIZE | THICKNESS | DRILLING | WEIGHT | ||||||||||
OD | WELD NECK | BLIND | LTH | DIA AT BASE | DIA BEVEL | OD RF | BOLT CIRCLE | DIA HOLES | # HOLES | FILLET RADIUS MIN | WELD NECK | BLIND | |
O | C | C | Y | X | A | R | R | ||||||
26 | 30.94 | 1.62 | 1.75 | 3.50 | 26.94 | 26.06 | 28.00 | 29.31 | 0.88 | 36 | 0.38 | 120 | 373 |
28 | 32.94 | 1.75 | 1.88 | 3.75 | 28.94 | 28.06 | 30.00 | 31.31 | 0.88 | 40 | 0.38 | 140 | 454 |
30 | 34.94 | 1.75 | 2.00 | 3.94 | 31.00 | 30.06 | 32.00 | 33.31 | 0.88 | 44 | 0.38 | 150 | 543 |
32 | 37.06 | 1.81 | 2.12 | 4.25 | 33.06 | 32.06 | 34.00 | 35.44 | 0.88 | 48 | 0.38 | 170 | 648 |
34 | 39.56 | 1.94 | 2.25 | 4.34 | 35.12 | 34.06 | 36.25 | 37.69 | 1.00 | 40 | 0.38 | 210 | 783 |
36 | 41.62 | 2.06 | 2.31 | 4.62 | 37.19 | 36.06 | 38.25 | 39.75 | 1.00 | 44 | 0.38 | 240 | 890 |
38 | 44.25 | 2.12 | 2.50 | 4.88 | 39.25 | 38.12 | 40.25 | 42.12 | 1.12 | 40 | 0.38 | 290 | 1089 |
40 | 46.25 | 2.19 | 2.62 | 5.06 | 41.31 | 40.12 | 42.50 | 44.12 | 1.12 | 44 | 0.38 | 310 | 1247 |
42 | 48.25 | 2.31 | 2.69 | 5.25 | 43.38 | 42.12 | 44.50 | 46.12 | 1.12 | 48 | 0.44 | 345 | 1393 |
44 | 50.25 | 2.38 | 2.81 | 5.38 | 45.38 | 44.12 | 46.50 | 48.12 | 1.12 | 52 | 0.44 | 370 | 1579 |
46 | 52.81 | 2.44 | 2.94 | 5.69 | 47.44 | 46.12 | 48.62 | 50.56 | 1.25 | 40 | 0.44 | 435 | 1824 |
48 | 54.81 | 2.56 | 3.06 | 5.88 | 49.50 | 48.12 | 50.75 | 52.56 | 1.25 | 44 | 0.44 | 480 | 2045 |
50 | 56.81 | 2.69 | 3.18 | 6.06 | 51.50 | 50.12 | 52.75 | 54.56 | 1.25 | 48 | 0.44 | 520 | 2284 |
52 | 58.81 | 2.75 | 3.31 | 6.19 | 53.56 | 52.12 | 54.75 | 56.56 | 1.25 | 52 | 0.44 | 550 | 2547 |
54 | 61.00 | 2.81 | 3.44 | 6.38 | 55.62 | 54.12 | 56.75 | 58.75 | 1.25 | 56 | 0.44 | 620 | 2848 |
56 | 63.00 | 2.88 | 3.56 | 6.56 | 57.69 | 56.12 | 58.75 | 60.75 | 1.25 | 60 | 0.56 | 650 | 3144 |
58 | 65.94 | 2.94 | 3.68 | 6.88 | 59.69 | 58.12 | 60.75 | 63.44 | 1.38 | 48 | 0.56 | 780 | 3560 |
60 | 67.94 | 3.00 | 3.81 | 7.06 | 61.81 | 60.12 | 63.00 | 65.44 | 1.38 | 52 | 0.56 | 850 | 3913 |
»Series B Class 300 |
![]() |
NOM SIZE |
THICKNESS |
DRILLING |
WEIGHT |
||||||||||
OD |
WELD NECK |
BLIND |
LTH |
DIA AT BASE |
DIA BEVEL |
OD RF |
BOLT CIRCLE |
DIA HOLES |
# HOLES |
FILLET RADIUS MIN |
WELD NECK |
BLIND |
|
O |
C |
C |
Y |
X |
A |
R |
R |
||||||
26 |
34.12 |
3.50 |
3.50 |
5.69 |
27.62 |
26.19 |
29.00 |
31.62 |
1.38 |
32 |
0.56 |
400 |
907 |
28 |
36.25 |
3.50 |
3.50 |
5.88 |
29.75 |
28.19 |
31.00 |
33.75 |
1.38 |
36 |
0.56 |
450 |
1023 |
30 |
39.00 |
3.69 |
3.69 |
6.22 |
32.00 |
30.25 |
33.25 |
36.25 |
1.50 |
36 |
0.56 |
550 |
1249 |
32 |
41.50 |
4.06 |
4.06 |
6.62 |
34.00 |
32.25 |
35.50 |
38.50 |
1.62 |
32 |
0.62 |
685 |
1556 |
34 |
43.62 |
4.06 |
4.06 |
6.81 |
36.12 |
34.25 |
37.50 |
40.62 |
1.62 |
36 |
0.62 |
750 |
1719 |
36 |
46.12 |
4.06 |
4.06 |
7.12 |
38.00 |
36.25 |
39.75 |
42.88 |
1.75 |
32 |
0.62 |
840 |
1921 |
38 |
48.12 |
4.38 |
4.38 |
7.56 |
40.00 |
38.25 |
41.75 |
44.88 |
1.75 |
36 |
0.62 |
915 |
2257 |
40 |
50.12 |
4.56 |
4.56 |
7.81 |
42.00 |
40.25 |
43.88 |
46.88 |
1.75 |
40 |
0.62 |
990 |
2549 |
42 |
52.50 |
4.69 |
4.69 |
8.06 |
44.00 |
42.31 |
46.00 |
49.00 |
1.88 |
36 |
0.62 |
1135 |
2876 |
44 |
54.50 |
5.00 |
5.00 |
8.44 |
46.19 |
44.31 |
48.00 |
51.00 |
1.88 |
40 |
0.62 |
1235 |
3304 |
46 |
57.50 |
5.06 |
5.12 |
8.75 |
48.38 |
46.31 |
50.00 |
53.75 |
2.00 |
36 |
0.62 |
1470 |
3766 |
48 |
59.50 |
5.06 |
5.31 |
8.81 |
50.31 |
48.31 |
52.25 |
55.75 |
2.00 |
40 |
0.62 |
1575 |
4183 |
50 |
61.50 |
5.44 |
5.50 |
9.25 |
52.38 |
50.31 |
54.25 |
57.75 |
2.00 |
44 |
0.62 |
1710 |
4629 |
52 |
63.50 |
5.62 |
5.68 |
9.56 |
54.44 |
52.31 |
56.25 |
59.75 |
2.00 |
48 |
0.62 |
1840 |
5096 |
54 |
65.88 |
5.38 |
5.88 |
9.44 |
56.50 |
54.31 |
58.25 |
62.12 |
2.00 |
48 |
0.62 |
1980 |
5678 |
56 |
69.50 |
6.06 |
6.18 |
10.56 |
58.81 |
56.31 |
60.50 |
65.00 |
2.38 |
36 |
0.69 |
2595 |
6642 |
58 |
71.94 |
6.06 |
6.38 |
10.81 |
60.94 |
58.31 |
62.75 |
67.44 |
2.38 |
40 |
0.69 |
2770 |
7347 |
60 |
73.94 |
5.94 |
6.56 |
10.69 |
62.94 |
60.31 |
65.00 |
69.44 |
2.38 |
40 |
0.69 |
2870 |
7980 |
» Series B Class 400 |
![]() |
NOM SIZE |
THICKNESS |
DRILLING |
WEIGHT |
||||||||||
OD |
WELD NECK |
BLIND |
LTH |
DIA AT BASE |
DIA BEVEL |
OD RF |
BOLT CIRCLE |
# HOLES |
DIA HOLES |
FILLET RADIUS MIN |
WELD NECK |
BLIND |
|
O |
C |
C |
Y |
X |
A |
R |
R |
||||||
26 |
33.50 |
3.50 |
3.50 |
5.88 |
27.12 |
26.00 |
28.00 |
30.75 |
28 |
1.50 |
0.44 |
360 |
874 |
28 |
36.00 |
3.75 |
3.75 |
6.25 |
29.12 |
28.00 |
30.00 |
33.00 |
24 |
1.62 |
0.50 |
450 |
1081 |
30 |
38.25 |
4.00 |
4.00 |
6.69 |
31.25 |
30.00 |
32.25 |
35.25 |
28 |
1.62 |
0.50 |
530 |
1302 |
32 |
40.75 |
4.25 |
4.25 |
7.06 |
33.25 |
32.00 |
34.38 |
37.50 |
28 |
1.75 |
0.50 |
635 |
1570 |
34 |
42.75 |
4.38 |
4.38 |
7.38 |
35.38 |
34.00 |
36.50 |
39.50 |
32 |
1.75 |
0.56 |
690 |
1781 |
36 |
45.50 |
4.69 |
4.69 |
7.88 |
37.50 |
36.00 |
38.62 |
42.00 |
28 |
1.88 |
0.56 |
855 |
2160 |
38 |
47.50 |
4.88 |
4.88 |
8.12 |
39.50 |
38.00 |
40.75 |
44.00 |
32 |
1.88 |
0.56 |
935 |
2450 |
40 |
50.00 |
5.12 |
5.12 |
8.50 |
41.50 |
40.00 |
43.00 |
46.25 |
32 |
2.00 |
0.56 |
1090 |
2848 |
42 |
52.00 |
5.25 |
5.25 |
8.81 |
43.62 |
42.00 |
45.00 |
48.25 |
32 |
2.00 |
0.56 |
1190 |
3159 |
44 |
54.50 |
5.50 |
5.50 |
9.18 |
45.62 |
44.00 |
47.25 |
50.50 |
32 |
2.12 |
0.56 |
1375 |
3635 |
46 |
56.75 |
5.75 |
5.75 |
9.62 |
47.75 |
46.00 |
49.50 |
52.75 |
36 |
2.12 |
0.56 |
1525 |
4120 |
48 |
59.50 |
6.00 |
6.00 |
10.12 |
49.88 |
48.00 |
51.50 |
55.25 |
28 |
2.38 |
0.56 |
1790 |
4726 |
50 |
61.75 |
6.19 |
6.25 |
10.56 |
52.00 |
50.00 |
53.62 |
57.50 |
32 |
2.38 |
0.56 |
1950 |
5303 |
52 |
63.75 |
6.38 |
6.44 |
10.88 |
54.00 |
52.00 |
55.62 |
59.50 |
32 |
2.38 |
0.56 |
2125 |
5823 |
54 |
67.00 |
6.69 |
6.75 |
11.38 |
56.12 |
54.00 |
57.88 |
62.25 |
28 |
2.62 |
0.56 |
2565 |
6742 |
56 |
69.00 |
6.88 |
6.94 |
11.75 |
58.25 |
56.00 |
60.12 |
64.25 |
32 |
2.62 |
0.56 |
2710 |
7352 |
58 |
71.00 |
7.00 |
7.12 |
12.06 |
60.25 |
58.00 |
62.12 |
66.25 |
32 |
2.62 |
0.56 |
3230 |
7986 |
60 |
74.25 |
7.31 |
7.44 |
12.56 |
62.38 |
60.00 |
64.38 |
69.00 |
32 |
2.88 |
0.56 |
3820 |
9126 |
» Series B Class 600 |
![]() |
NOM SIZE | THICKNESS | DRILLING | WEIGHT | ||||||||||
OD | WELD NECK | BLIND | LTH | DIA AT BASE | DIA BEVEL | OD RF | BOLT CIRCLE | # HOLES | DIA HOLES | FILLET RADIUS MIN | WELD NECK | BLIND | |
O | C | C | Y | X | A | R | R | ||||||
26 | 35.00 | 4.38 | 4.38 | 7.12 | 27.50 | 26.00 | 28.62 | 31.75 | 28 | 1.75 | 0.50 | 550 | 1194 |
28 | 37.50 | 4.56 | 4.56 | 7.50 | 29.62 | 28.00 | 30.88 | 34.00 | 28 | 1.88 | 0.50 | 650 | 1427 |
30 | 40.25 | 4.94 | 5.00 | 8.06 | 31.75 | 30.00 | 33.12 | 36.50 | 28 | 2.00 | 0.50 | 810 | 1802 |
32 | 42.75 | 5.12 | 5.31 | 8.50 | 33.88 | 32.00 | 35.25 | 38.75 | 28 | 2.12 | 0.50 | 950 | 2159 |
34 | 45.75 | 5.56 | 5.68 | 9.19 | 36.00 | 34.00 | 37.50 | 41.50 | 24 | 2.38 | 0.56 | 1205 | 2645 |
36 | 47.75 | 5.75 | 5.94 | 9.56 | 38.12 | 36.00 | 39.75 | 43.50 | 28 | 2.38 | 0.56 | 1340 | 3013 |
38 | 50.00 | 6.00 | 6.12 | 10.00 | 40.25 | 38.00 | 41.50 | 45.75 | 28 | 2.38 | 0.56 | 1470 | 3404 |
40 | 52.00 | 6.25 | 6.38 | 10.38 | 42.25 | 40.00 | 43.75 | 47.75 | 32 | 2.38 | 0.56 | 1630 | 3838 |
42 | 55.25 | 6.62 | 6.75 | 11.00 | 44.38 | 42.00 | 46.00 | 50.50 | 28 | 2.62 | 0.56 | 2030 | 4585 |
44 | 57.25 | 6.81 | 7.00 | 11.38 | 46.50 | 44.00 | 48.25 | 52.50 | 32 | 2.62 | 0.56 | 2160 | 5105 |
46 | 59.50 | 7.06 | 7.31 | 11.81 | 48.62 | 46.00 | 50.25 | 54.75 | 32 | 2.62 | 0.56 | 2410 | 5758 |
48 | 62.75 | 7.44 | 7.69 | 12.44 | 50.75 | 48.00 | 52.50 | 57.50 | 32 | 2.88 | 0.56 | 2855 | 6737 |
50 | 65.75 | 7.75 | 8.00 | 12.94 | 52.88 | 50.00 | 54.50 | 60.00 | 28 | 3.12 | 0.56 | 3330 | 7695 |
52 | 67.75 | 8.00 | 8.25 | 13.25 | 54.88 | 52.00 | 56.50 | 62.00 | 32 | 3.12 | 0.56 | 3560 | 8426 |
54 | 70.00 | 8.25 | 8.56 | 13.75 | 57.00 | 54.00 | 58.75 | 64.25 | 32 | 3.12 | 0.56 | 3920 | 9333 |
56 | 73.00 | 8.56 | 8.88 | 14.25 | 59.12 | 56.00 | 60.75 | 66.75 | 32 | 3.38 | 0.62 | 4280 | 10529 |
58 | 75.00 | 8.75 | 9.12 | 14.56 | 61.12 | 58.00 | 63.00 | 68.75 | 32 | 3.38 | 0.62 | 4640 | 11414 |
60 | 78.50 | 9.19 | 9.56 | 15.31 | 63.38 | 60.00 | 65.25 | 71.75 | 28 | 3.62 | 0.90 | 5000 | 13108 |
»Series B Class 900 |
![]() |
NOM SIZE | THICKNESS | DRILLING | WEIGHT | ||||||||||
OD | WELD NECK | BLIND | LTH | DIA AT BASE | DIA BEVEL | OD RF | BOLT CIRCLE | # HOLES | DIA HOLES | FILLET RADIUS MIN | WELD NECK | BLIND | |
O | C | C | Y | X | A | R | R | ||||||
26 | 40.25 | 5.31 | 6.06 | 10.19 | 29.25 | 26.00 | 30.00 | 35.50 | 20 | 2.62 | 0.44 | 1050 | 2184 |
28 | 43.50 | 5.81 | 6.56 | 10.88 | 31.38 | 28.00 | 32.25 | 38.25 | 20 | 2.88 | 0.50 | 1520 | 2762 |
30 | 46.50 | 6.12 | 6.93 | 11.38 | 33.50 | 30.00 | 34.50 | 40.75 | 20 | 3.12 | 0.50 | 1820 | 3334 |
32 | 48.75 | 6.31 | 7.31 | 11.94 | 35.75 | 32.00 | 36.50 | 43.00 | 20 | 3.12 | 0.50 | 2065 | 3865 |
34 | 51.75 | 6.75 | 7.68 | 12.56 | 37.88 | 34.00 | 39.00 | 45.50 | 20 | 3.38 | 0.56 | 2450 | 4576 |
36 | 53.00 | 6.81 | 7.94 | 12.81 | 40.00 | 36.00 | 40.50 | 47.25 | 24 | 3.12 | 0.56 | 2520 | 4963 |
38 | 57.50 | 7.50 | 8.50 | 13.88 | 42.25 | 38.00 | 43.25 | 50.75 | 20 | 3.62 | 0.75 | 3385 | 6253 |
40 | 59.50 | 7.75 | 8.81 | 14.31 | 44.38 | 40.00 | 45.75 | 52.75 | 24 | 3.62 | 0.81 | 3620 | 6940 |
42 | 61.50 | 8.12 | 9.12 | 14.62 | 46.31 | 42.00 | 47.75 | 54.75 | 24 | 3,62 | 0.81 | 3960 | 7675 |
44 | 64.88 | 8.44 | 9.56 | 15.38 | 48.62 | 44.00 | 50.00 | 57.62 | 24 | 3.88 | 0.88 | 4300 | 8954 |
46 | 68.25 | 8.88 | 10.06 | 16.18 | 50.88 | 46.00 | 52.50 | 60.50 | 24 | 4.12 | 0.88 | 4640 | 10426 |
48 | 70.25 | 9.19 | 10.38 | 16.50 | 52.88 | 48.00 | 54.50 | 62.50 | 24 | 4.12 | 0.94 | 4980 | 11398 |
